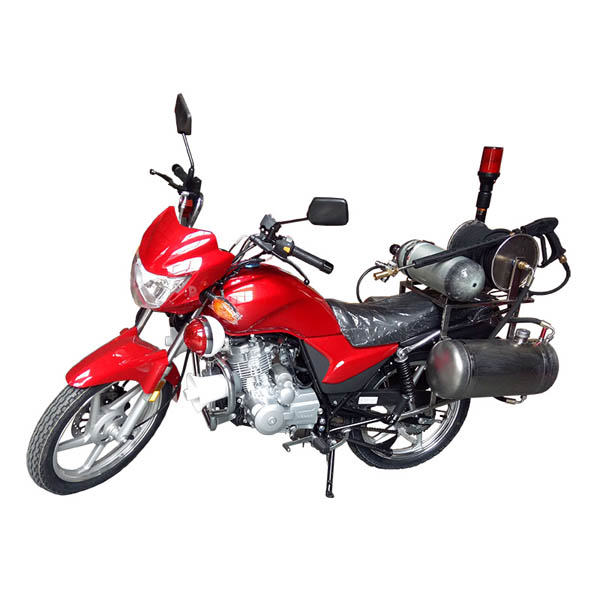

Fire Motorcycle

1. The fire-fighting motorcycle consists of a motorcycle, a fire-extinguishing device, a water storage device, a spray gun,etc.

2. The equipment can effectively carry out fire-fighting and rescue tasks in mountainous and hilly areas. once a fire accident occurs in the mountain area, the forest area,etc, with the advantage of small vehicle type and high speed, the fire-fighting motorcycle can quickly pass through the rugged mountain road to the accident site to carry out fire-fighting and rescue.

3. It solves the problem that the current personnel carrier, fire water tank car and so on can not reach the fire field smoothly and quickly because of the limitation of vehicle type.






PDF Download
Details
Tags

Type I

Max.Pressure 8.0Mpa Fire-fighting motorcycle1
Rated flow 4.0L/min
Mean range Direct flow ≥12m, nebulization ≥8m
Water tank volume 20L
Engine displacement 124ml
Maximum speed 90Km/h
Wheel base 1200mm

Type II

Cylinder Max.Pressure 30Mpa Fire-fighting motorcycle2
Working pressure ≥2.5MPa
Rated flow 4.0L/min
Mean range Direct flow ≥12m, nebulization ≥8m
Water tank volume 20L x 2
Rubber hose length 30m
Engine displacement 124ml
Maximum speed 90Km/h
Weight of the device ≤150kg
Wheel base 1200mm
Outline dimension 2160*910*1400mm

Fire-fighting motorcycle4
Fire-fighting motorcycle5
Fire-fighting motorcycle2
