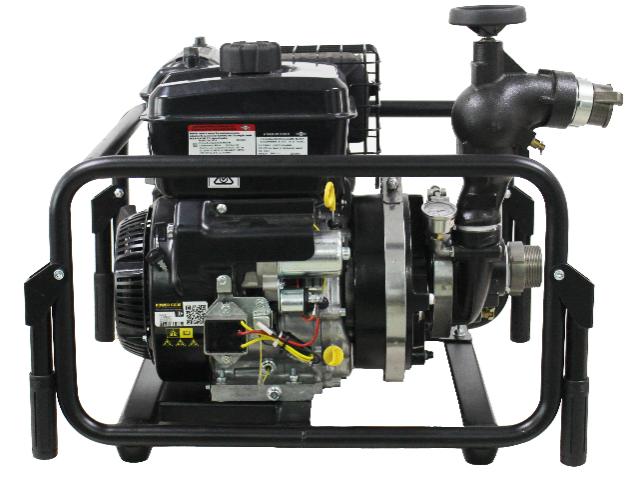

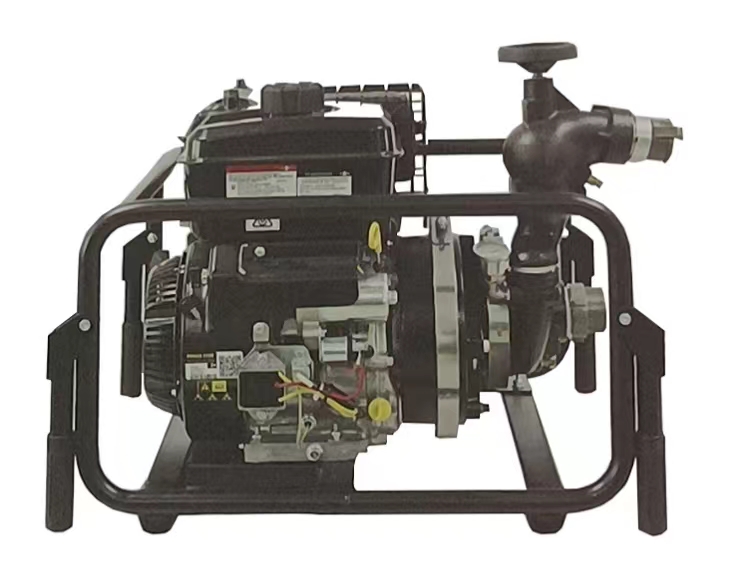

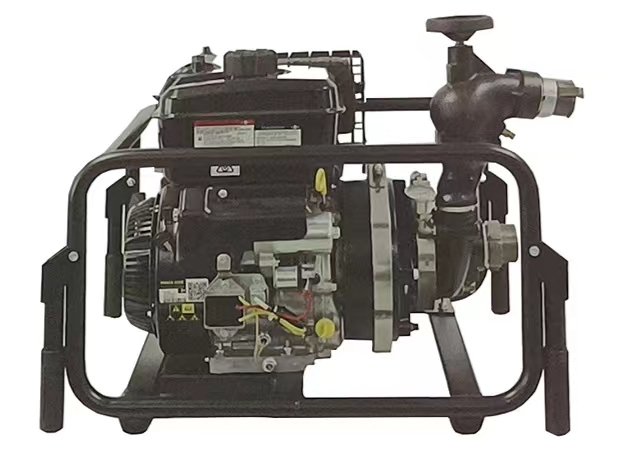

Portable High Pressure Water Pump

The complete set of equipment includes engines, pumps, spray nozzles, inlet pipe, high-pressure fire hose and accessories.

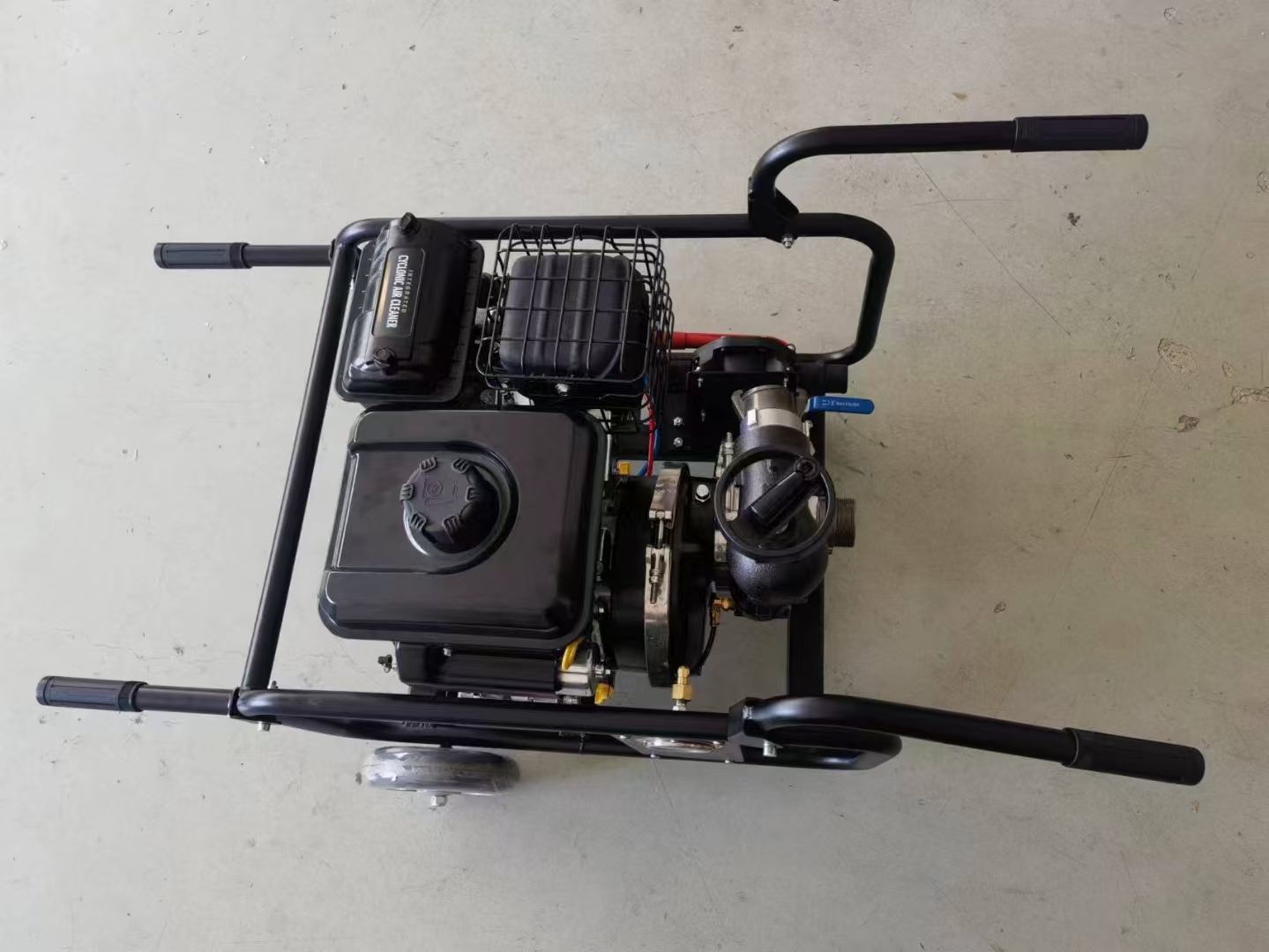

Equipped with wheels and hand carry handleit can be vehicle-mounted too.  It adopts the folding handle outer frame design, it can move quickly, which can effectively solve Rapid fire extinguishing requirement.






PDF Download
Details
Tags

Features and advantages:

Enough water output can spray large flow through the 40 (1.5 inch) water hose to extinguish the fire, but also through the water separator to separate 2 x 1.5” water discharge hose, to achieve two spray water column to extinguish the fire and the transmission height is not affected, to achieve a fire pump equal to two functions, saving procurement costs and labor costs; The fire pump can transport water from a long distance to a high height

Model FFW 14/500
Engine type Four strokes, forced air cooling
Power 14HP
Flow 500L/min
Suction lift 7m
Maximum lift 180m
Maximum range 30m
Net weight of the complete machine 75kg
Starting mode Starting by a hand line or electric starting

Applications
• Attack-line firefighting
• Long hose lay for remote watering during firefighting operations
• High-elevation firefighting in mountainous areas
• High pressure provides accuracy in flow trajectory
• Tandem pumping over long distances
• Parallel pumping for higher volume slip-on units
