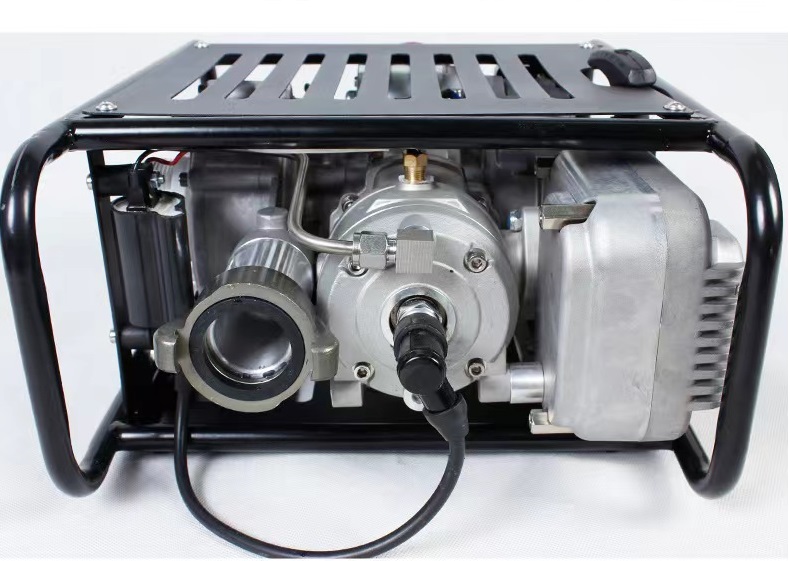

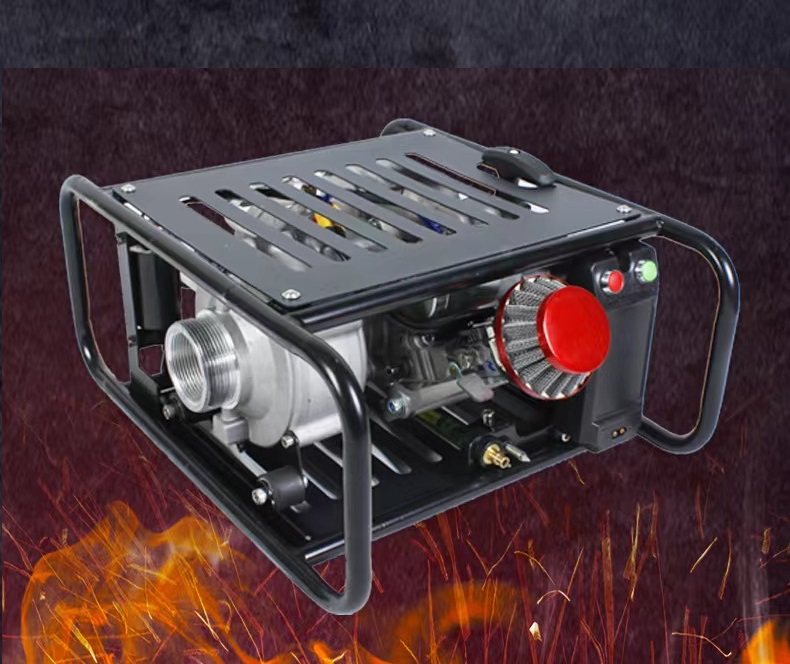

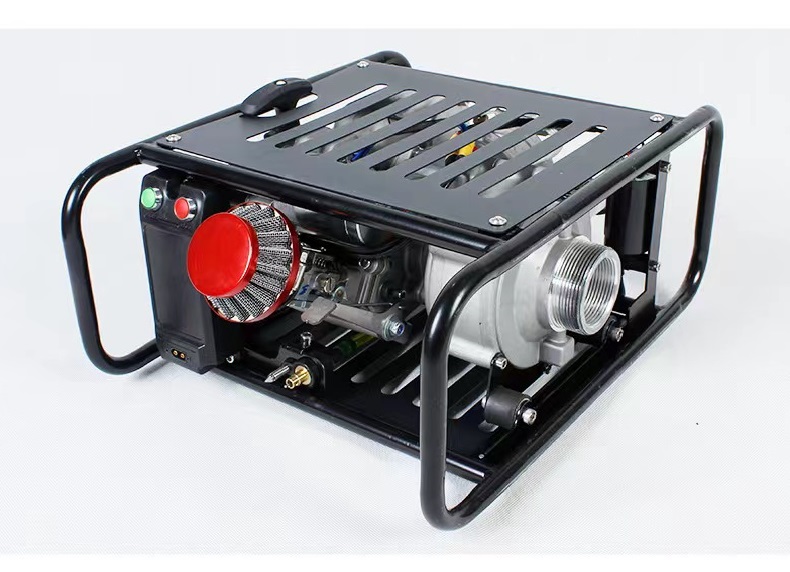

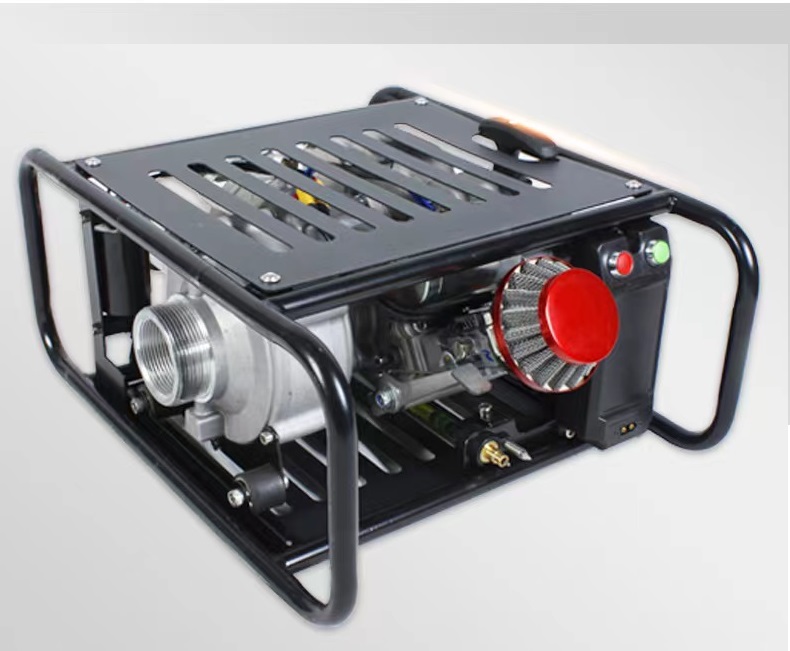

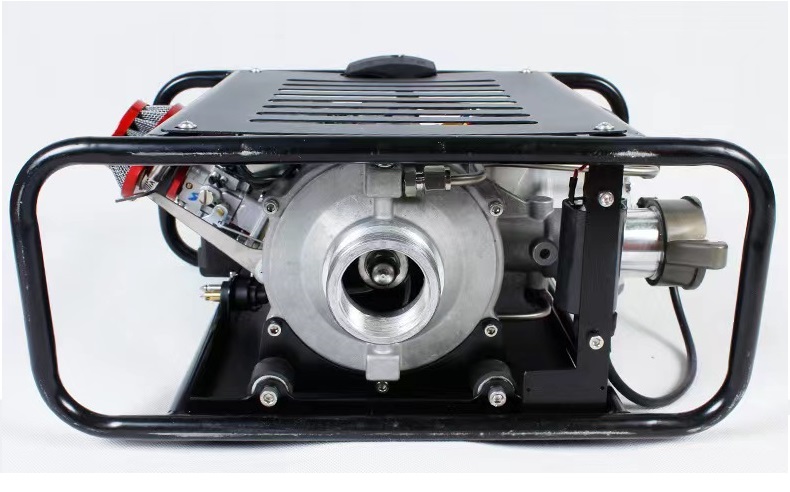

Light duty high pressure forestry portable fire water pump Model：TBQ 10/2 |

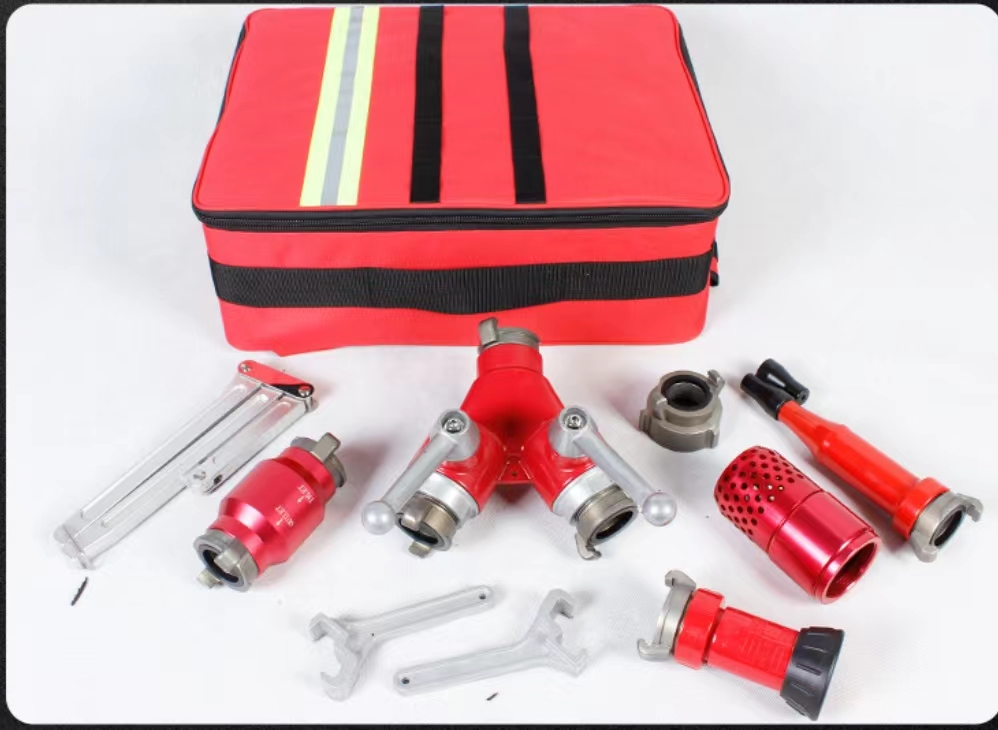

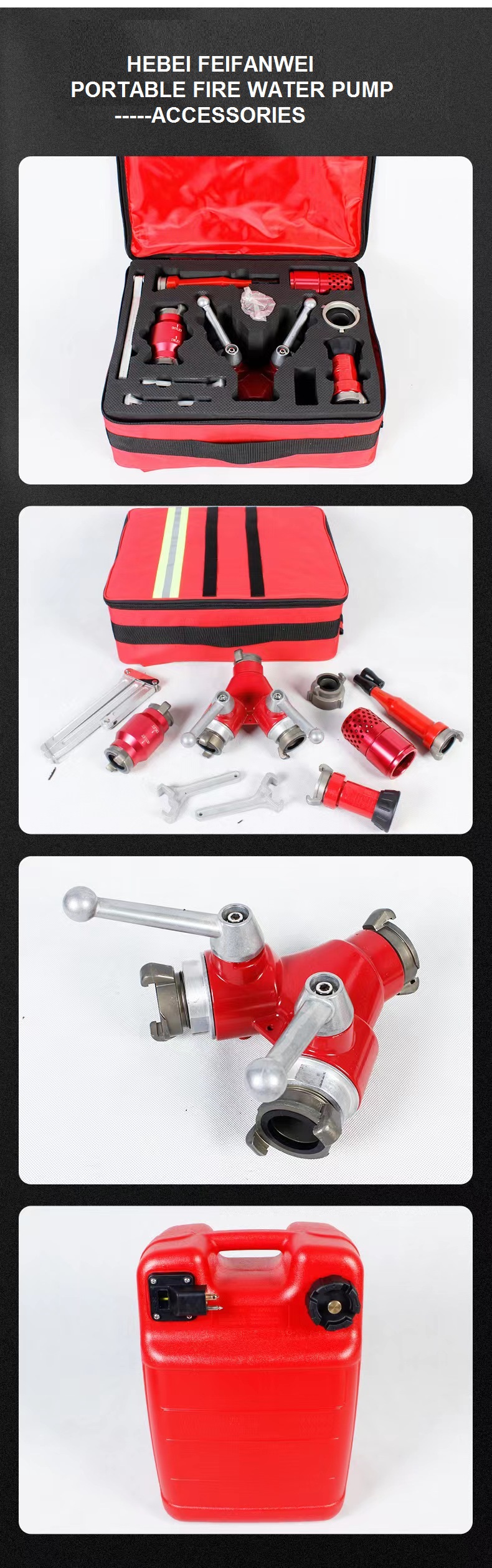

lThe complete set of equipment includes engine, water pump, straight Nozzle, spray Nozzle, water inlet pipe, high pressure hose and accessories.
Using 80c high performance UAV engine powertrain, with air cooling and forced water cooling compound heat dissipation, to meet the ultra-long continuous working time, the engine has been tested at high speed and uninterrupted above 300hr, the maximum speed can reach 9000 rpm, the output power can reach 10 horsepower, and the engine overheat protection system.
| Model | TBQ 10/2 |
| Engine type | Two-stroke special water-cooled engine(Ceramic cylinder) |
| Displacement | 80CC |
| Engine Power | ≥ 10HP |
| Pump type | Double stainless steel impeller centrifugal pump |
| Max. RPM | 9000 r/min |
| Maximum flow | ≥ 4.8L/S (≥ 288 L/min) |
| Outlet Pressure | ≥2.3Mpa |
| Inlet Dia. | 2.0” (50mm) |
| Outlet Dia. | 1.5” (40mm) |
| Nozzle range | ≥ 35 m |
| Lift Head | ≥ 210 m |
| Suction depth | ≥ 7 m |
| Fuel tank volume (external) | 24L or 12L |
