High Pressure fire water Pump

Using the single-cylinder, four-stroke engine design, the structure is compact, the weight is not very heavy, the performance is stable, the noise is small, the conveying water distance is far, the operation is convenient.

CONTACT NOW PDF Download

Details

Tags

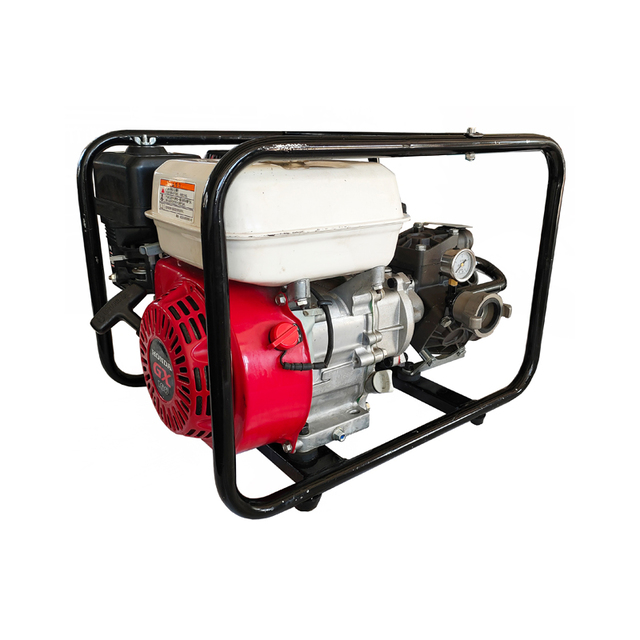

l The whole set of equipment includes engine, water pump, spray gun, water inlet pipe, high-pressure water hose and accessories.

l Using the single-cylinder, four-stroke engine design, the structure is compact, the weight is not very heavy, the performance is stable, the noise is small, the conveying water distance is far, the operation is convenient.

l The power is large, the pressure is high, and the fire-extinguishing effect is prominent.

Engine type	Single cylinder, four strokes
Engine Power	≥ 23HP
Displacement	≥ 620cc
Lift head	≥ 470m
Spray range	≥ 29m
Maximum flow	≥ 150L/min
Maximum Pressure	≥ 15 Mpa
Suction lift	≥ 7m
Pump type	Four cylinder diaphragm pump
Inlet Dia.	40mm (1.5”)
Outlet Dia.	40mm (1.5”)
Net weight	≤ 80kg
