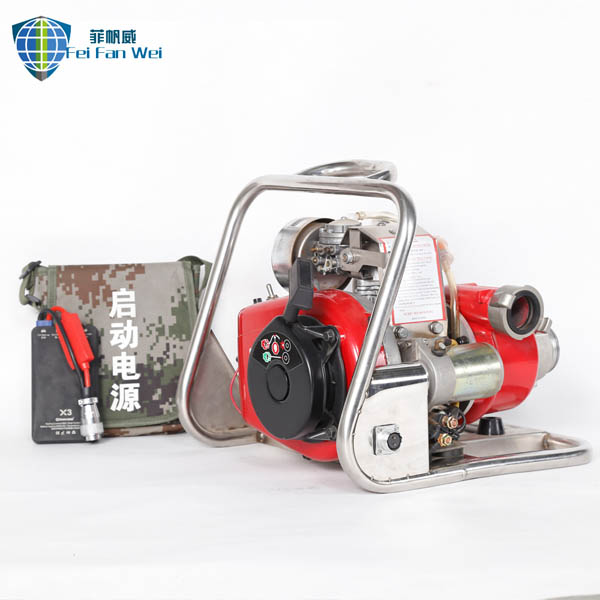

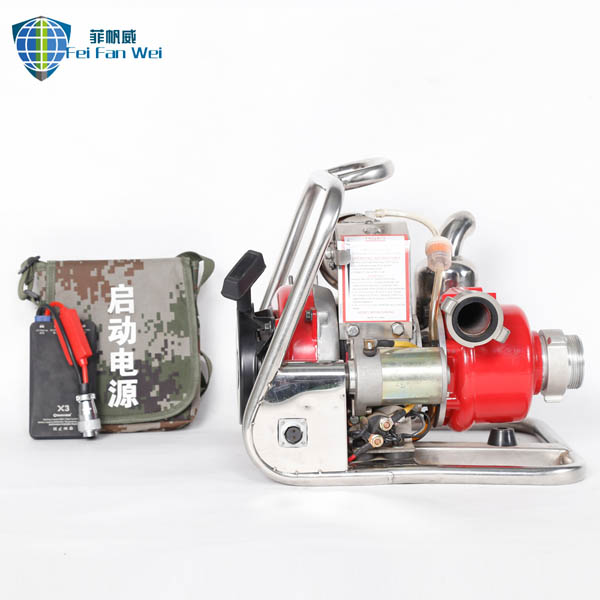

Forestry Backpack portable fire water Pump

The whole device includes an engine, a water pump, a spray gun, a water inlet pipe, a high pressure hose and accessories. It adopts a two-stroke engine and brass single-machine impeller design. The pump head is made of ultra-light high-strength anti-corrosion aluminum alloy. It has the characteristics of compact structure, convenience in carrying, stable performance and long conveying distance and the like. It has two different starting methods which can be arbitrarily selected, and are starting by a hand line and electric starting respectively. Different starting modes can be selected according to the actual situation.

CONTACT NOW PDF Download

Details

Tags

The whole device pairs a reliable 3-stage pump end with a 4-stoke engine. It can be used by itself, in tandem or in parallel with other pumps, and is also a very popular choice for slip-on applications.

Model	TBQ8/3
Engine type	Single cylinder, two strokes, forced air cooling
Power	8HP
Flow	340L/min
Suction lift	7m
Maximum lift	165m
Maximum range	25m
Fuel tank volume	25L
Net weight of the complete machine	15kg
Starting mode	Starting by a hand line or electric starting

Applications
• Attack-line firefighting
• Long hose lay for remote watering during firefighting operations
• High-elevation firefighting in mountainous areas
• High pressure provides accuracy in flow trajectory
• Tandem pumping over long distances
• Parallel pumping for higher volume slip-on units

Features & Benefits
• Quick-release clamp and detachable pump end for minimal equipment downtime and inventory and easy infield pump end replacement
• Unique blister-resistant mechanical rotary seal to prolong pump end longevity
• Sealed bearing to eliminate pump end greasing in the field
• Belt-drive system for reliable, low maintenance performance
• Aluminum alloy pump components and anodized parts for lighter weight and greater resistance to corrosion
